Victorian and Edwardian Property Drainage: Common Problems and Solutions

The Victorian and Edwardian building boom created millions of terrace and semi-detached properties that remain highly desirable and widely occupied today. Their drainage systems, however, were designed and installed over 100 years ago using materials and techniques that have different failure modes from modern drainage. If you own, manage or are buying a pre-1920 property, understanding these specific issues saves money and prevents nasty surprises.

Clay pipe drainage: what it is and why it matters

The vast majority of Victorian and Edwardian properties have underground drainage in vitrified clay pipe — a fired ceramic pipe that was the standard until plastic pipe became widely available from the 1960s. Clay pipe drainage has genuine advantages: the material is chemically inert, doesn’t corrode, and well-installed clay pipe can last for well over a century. But the jointing method and the way it responds to ground movement is where the problems lie.

Victorian clay pipes were typically laid in 1-metre sections, jointed with a cement and tarred hemp collar. These joints:

• Crack and open up as the ground moves (shrinkable clay soils cause significant seasonal movement)
• Allow root ingress through even hairline cracks
• Become misaligned (displaced joints) over time
• Lose the jointing compound, leaving open gaps

Unlike modern plastic pipe which has push-fit flexible joints that accommodate movement, Victorian clay joints are rigid. Any ground movement goes into the joint.

Root ingress: the most common failure

Tree and shrub roots seek out moisture. A clay drain pipe with a minor joint crack is a major water source — roots enter through the crack, find a warm wet environment, and grow to fill the available space. Over years, root masses in clay pipes can reach the size of a football and create complete blockages.

Properties most at risk:

• Any property with mature trees within 10–15 metres of the drain run
• Properties with fig trees, willows, poplars, or other moisture-seeking species
• Properties where previous owners planted new trees on or near the drain line
• Victorian terrace rows where successive owners have planted front-garden trees

Root removal by jetting (with a root-cutting nozzle) clears the blockage, but the entry point — the cracked or open joint — remains. Without relining, roots return within months. A root-cut followed by CIPP relining is the long-term solution.

Shared sewers and combined drains

Victorian drainage frequently uses a combined system — one drain carries both wastewater (from the house) and surface water (from roofs and paths). This was the standard until the 1970s, when Building Regulations required separate foul and surface water systems.

Combined systems mean:

• High flow volumes during heavy rain, which can overwhelm ageing pipes and inspection chambers
• Surcharging (sewage backing up to the surface) if the downstream sewer is overloaded — a problem across much of Victorian urban Britain during storm events
• Water company responsibility may extend further into the property than on modern systems (the boundary of public sewer responsibility changed under the 2011 sewer transfer, bringing many shared drains into public ownership)

Check where your drainage system is mapped. Most water companies provide a public sewer map online. The drainage mapped on your property is private; drainage mapped in the public sewer is the water company’s responsibility. This matters when discussing who pays for repairs.

Inspection chambers: construction and condition

Victorian inspection chambers are typically brick-built, circular structures with a concrete or brick-in-cement base, channel, and benching. Common failure modes:

• Deteriorating mortar joints: Water infiltrates the brickwork, washing out the mortar over decades. In severe cases, the chamber walls begin to fail structurally.
• Damaged or sunken covers: Cast iron covers in footpaths and driveways take significant loading. Covers that have sunk below the surrounding level, cracked, or become unsupported are trip hazards and allow surface water ingress.
• Blocked benching: The sloped concrete around the central channel collects debris and becomes blocked with silt and grease deposits.
• Root ingress: Brick chambers are as vulnerable as clay pipes to root ingress through deteriorating mortar.

Chambers can be repaired (re-pointing and channel rebuilding) or replaced with modern pre-formed plastic chambers, which are more hygienic and maintenance-friendly.

Lead pipework

Lead supply pipes were standard until the 1970s and remain present in many Victorian properties — most commonly as the supply pipe from the water main to the property boundary (the “communication pipe” section that is the water company’s responsibility) and as the internal supply pipe from the boundary stopcock to the kitchen sink.

Lead is a neurotoxin. Its presence in drinking water, even at low concentrations, poses documented health risks, particularly for children and pregnant women. Water companies are working to replace the section of lead pipe from the main to the boundary, but the internal section from the boundary to the property is the homeowner’s responsibility.

If you have lead pipes internally:

• Have the water tested (water company testing is free on request)
• Contact your water company — many run replacement schemes, sometimes subsidised
• Run the kitchen tap for a minute before drawing drinking water (particularly first thing in the morning, after the water has sat in the pipe overnight)

Lead pipes are soft and grey, with a slightly bulging look at joints. If you’re not sure, a plumber can confirm.

Pre-purchase considerations

When buying a Victorian or Edwardian property:

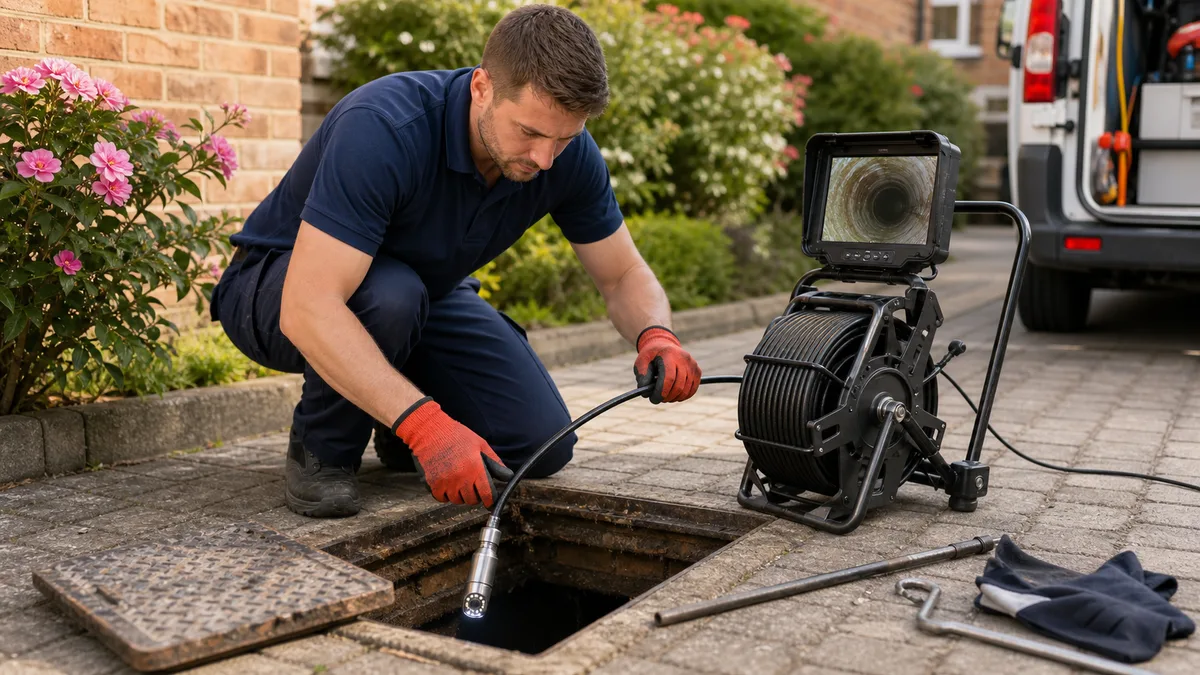

1. Commission a pre-purchase CCTV drain survey. It’s not covered by the structural survey. See our pre-purchase drain survey guide.
2. Investigate trees carefully. Ask the vendor about any tree removals in the last 5–10 years — recently removed trees leave decaying roots that continue to cause problems in drains.
3. Check the water company sewer map. Download it from your water company’s website before exchange. Confirm where the public/private sewer boundary is.
4. Test for lead. Your water company will test for free.
5. Get the drainage condition included in any price negotiation. Pre-purchase surveys regularly find defects in Victorian drainage — this is expected, not unusual, and is legitimate grounds for adjusting the purchase price.

Maintenance regime for Victorian drainage

With Victorian drainage, reactive management (waiting for problems to appear) is substantially more expensive than planned management. Annual jetting is strongly recommended for:

• Any property with trees near the drain runs
• Any property that has had a history of blockages
• Any property where the CCTV survey found root ingress or displaced joints

The cost of annual jetting (£120–£180 per visit) is typically less than a single reactive emergency clearance with associated damage and CCTV investigation.
